Machines

BOST Bostram 160 CNC (hydrostatic machine)

Maximum course of X-axis: 16.000 mm
Maximum course of Y-axis: 5.000 mm
Maximum course of RAM: 1.000 mm
Maximum course of spindle: 1.000 mm
Spindle diameter: ø 160 mm
Maximum table load: 120 tons
Maximum power on main spindle: 60 kW
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 6
Workpiece measuring: Renshaw

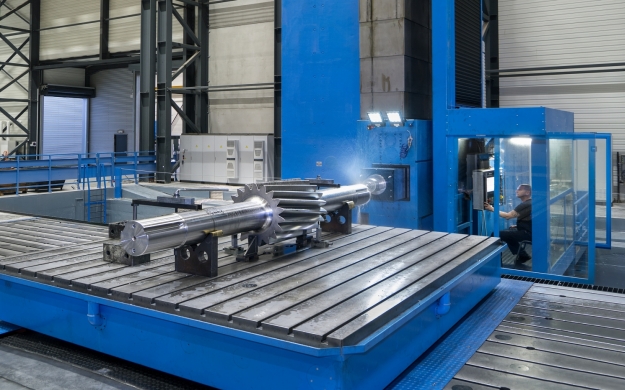

SKODA HCW 3 (hydrostatic machine)

Maximum course of X-axis: 14.000 mm
Maximum course of Y-axis: 9.000 mm
Maximum course of RAM: 1.600 mm
Maximum course of spindle: 1.400 mm
Spindle diameter: ø 225 mm
Maximum table load: 120 tons
Maximum power on main spindle: 100 kW
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 6
Workpiece measuring: Renshaw

BOST Bostram 160 CNC (hydrostatic machine)

Maximum course of X-axis: 16.000 mm
Maximum course of Y-axis: 5.000 mm
Maximum course of RAM: 1.000 mm
Maximum course of spindle: 1.000 mm
Spindle diameter: ø 160 mm
Maximum table load: 120 tons
Maximum power on main spindle: 60 kW
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 6
Workpiece measuring: Renshaw

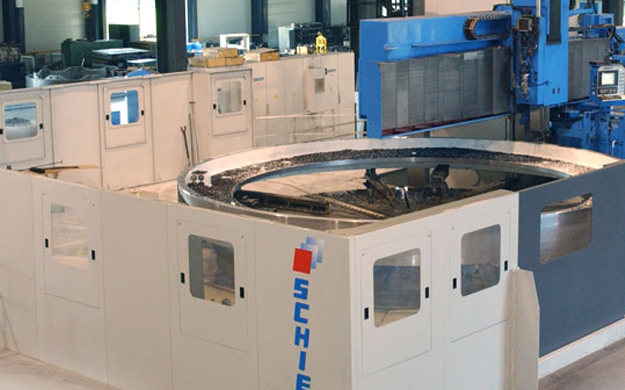

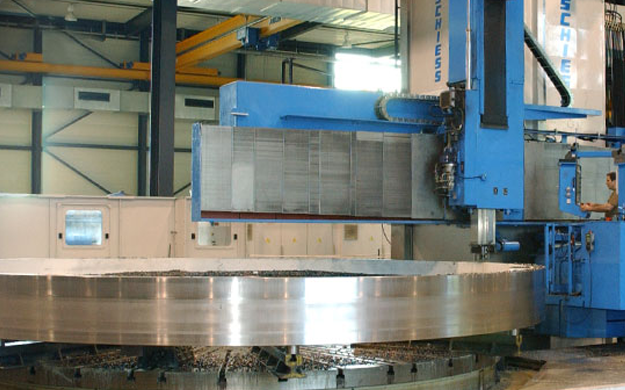

Schiess VTL 7.000/14.000 CNC

Type: Vertical lathe
Maximum turning height: 3.615 mm
Maximum course of RAM: 2.210 mm
Maximum diameter: Ø 14.500 mm
Maximum table load: 250 tons
Maximum power on main spindle: 145 kW
Maximum power on milling spindle: 37 kW
Automatic tool changer: 27 tools
C-axis: yes
Cylindrical and plane grinding: yes
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 3
Workpiece measuring: Renishaw

You-Ji YV-1.600 CNC ATC +

Maximum turning diametert: Ø 2.000 mm
Maximum turning height: 1.200 mm
Maximum table load: 8 tons
Maximum power on main spindle: 80 kW
Maximum power on milling spindle: 18 kW
Automatic tool change: 32 tool
C-axis: yes
Cylindrical and plane grinding: yes
Type of CNC control: Siemens Sunumerik 840 D
Controlled axes: 3
Workpiece measuring: renishaw

Dörries-Scharmann VC-4000/350 MC

Type: vertical lathe
Maximum turning height: 2.500 mm
Maximum diameter: Ø 4.000 mm
Maximum table load: 50 tons
Maximum power on main spindle: 120 kW
Maximum power on milling spindle: 37 kW
Automatic tool changer: 60 tool
C-axis: yes
Cylindrical and plane grinding: yes
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 3
Workpiece measuring: Renishaw

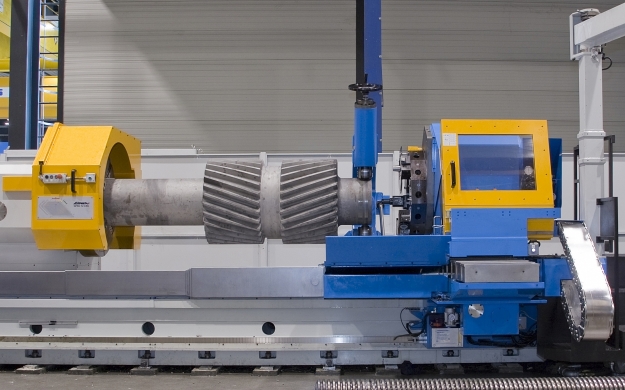

Giana GF/SC 12 CNC 710 x 7.000

Type: Horizontal lathe
Maximum turning length: 7.500 mm
Maximum diameter over bed: Ø 1.420 mm
Maximum diameter over slide: Ø 1.220 mm
Maximum weight of workpiece: 20 tons
Maximum power on main spindle: 60 kW
Maximum power on milling spindle: 12 kW
C-axis: yes
Y-axis: yes
Cylindrical and plane grinding: yes
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 4
Workpiece measuring: No

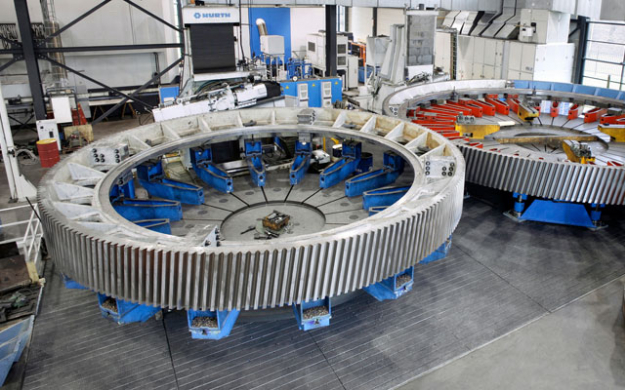

Hurth Modul WF-100/160 CNC

Maximum diameter: Ø 16.500 mm
Maximum module: M = 42 (generating method) | M = 80 (single indexing method)
Maximum face width: 2.500 mm
Maximum tangential course: 300 mm
Maximum table load: 250 tons
Maximum power on main spindle: 91 kW
Type of CNC control: Siemens Sinumerik 840
Controlled axes: 6

Hurth Modul WF-8000 CNC

Maximum diameter: Ø 10.000 mm
Maximum module: M = 42 (generating method) | M = 80 (single indexing method)
Maximum face width: 2.500 mm
Maximum tangential course: 600 mm
Maximum table load: 150 tons
Maximum power on main spindle: 75 kW
Type of CNC control: Siemens Sinumerik 880
Controlled axes: 6

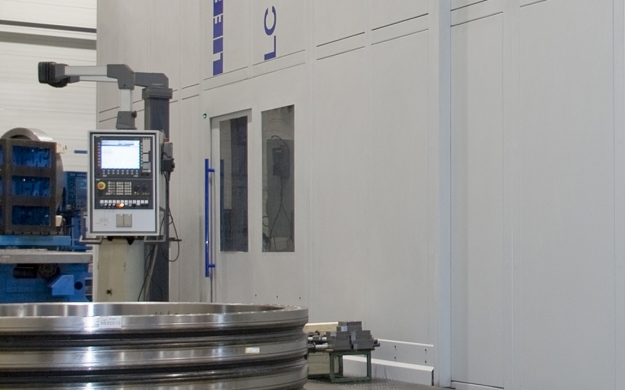

Liebherr LC-3502 CNC (with separate external and internal motor-hobbing heads):

Maximum external diameter: Ø 3.800 mm
Maximum module: M = 42 (generating method) | M = 80 (single indexing method)
Maximum external face width: 2.400 mm
Maximum tangential course: 600 mm
Maximum Internal gearcutting diameter: Ø 3.500 mm
Maximum internal module: M = 30
Maximum internal face width: 1.000 mm
Maximum table load: 40 tons
Maximum power on main spindle: 75 kW (external) | 53 kW (internal)
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 6

Hurth Modul WF-100/135 CNC

Maximum diameter: Ø 13.500 mm
Maximum module: M = 45 (generating method) | M = 80 (single indexing method)
Maximum face width: 2.500 mm
Maximum tangential course: 300 mm
Maximum table load: 250 tons
Maximum power on main spindle: 100 kW
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 6

Pfauter P-3000 CNC:

Maximum diameter: Ø 3.600 mm
Maximum module: M = 42 (generating method) | M = 80 (single indexing method)
Maximum face width: 1.400 mm
Maximum tangential course: 600 mm
Maximum table load: 45 tons
Maximum power on main spindle: 85 kW
Type of CNC control: Siemens Sinumerik 840 C
Controlled axes: 6

Hurth Modul WF-12 CNC (2 pieces)

Maximum diameter: Ø 1.250 mm
Maximum module: M = 20 (generating method) | M = 30 (single indexing method)
Maximum face width: 1.000 mm
Maximum tangential course: 300 mm
Maximum table load: 8 tons
Maximum power on main spindle: 40 kW
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 6

Liebherr LC-1600 CNC

Maximum diameter: Ø 1.700 mm
Maximum module: M = 27
Maximum face width: 1.400 mm
Maximum tangential course: 320 mm
Maximum Internal gearcutting: Ø 1.500 mm
Maximum internal face width: 600 mm
Maximum table load: 120 kN
Maximum power on main spindle: 45 kW
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 6

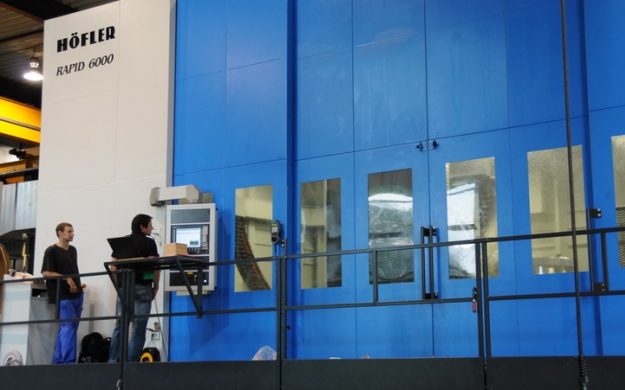

Höfler RAPID 6000 A/I CNC (double stander machine)

Maximum diameter: Ø 6.000 mm
Maximum height of profile: 120 mm
Maximum face width: 2.040 mm
Maximum table load: 50 tons
Maximum power on main spindle: 37 kW
Maximum Internal geargrinding diameter: Ø 5.000 mm
Minimum Internal geargrinding diameter: Ø 1.100 mm
Maximum height of profile: 120 mm
Maximum Internal face width: 1.000 mm
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 7
Workpiece measuring: Profile-, lead-, and pitch-, and run-out deviations

Höfler RAPID 2000 CNC

Maximum diameter: Ø 2.000 mmMaximum height of profile:120 mm
Maximum face width: 1.500 mm
Maximum table load: 25 tons
Maximum power on main spindle: 37 kW
Maximum Internal geargrinding diameter: Ø 2.000 mm
Minimum Internal geargrinding diameter: Ø 300 mm
Maximum height of profile: 72 mm
Maximum Internal face width: 500 mm
Type of CNC control: Siemens Sinumerik 840 D
Controlled axes: 7
Workpiece measuring: Profile-, lead-, and pitch-, and run-out deviations

Center Lathes

• Monforts KNC-5 / 1.500
• Monforts KNC 8 / 3.000
• Victor V-turn 36 CNC
• Mazak Slant turn 1500 CNC
• Skoda SR 1.000 x 6.000

Milling Machines

• Lugun 1.800 CNC
• Correa A-25 / 30 CNC

Grinding Machines

• Tos BUC 32 with internal grinding attachment
• Cometa 600 x 3.000 mm with internal grinding attachment
• Niles ZSTZ-08 CNC (geargrinding)

Others

• Liebherr L-901 (gearhobbing)
• WMW heckert (wormshafts)
• MAAG gearshapers SH-75, SH-100 and SH-300 with internal cutting
• Lorenz gearshapers for internal splines (max. Rd. 1.000 mm)
• Drilling machines
• Honing machines
